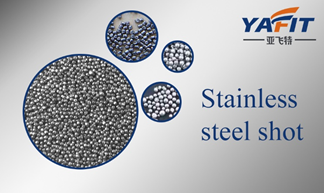

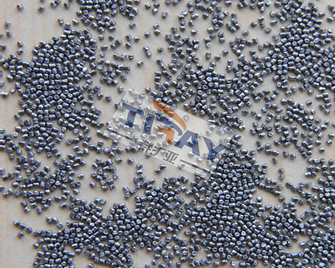

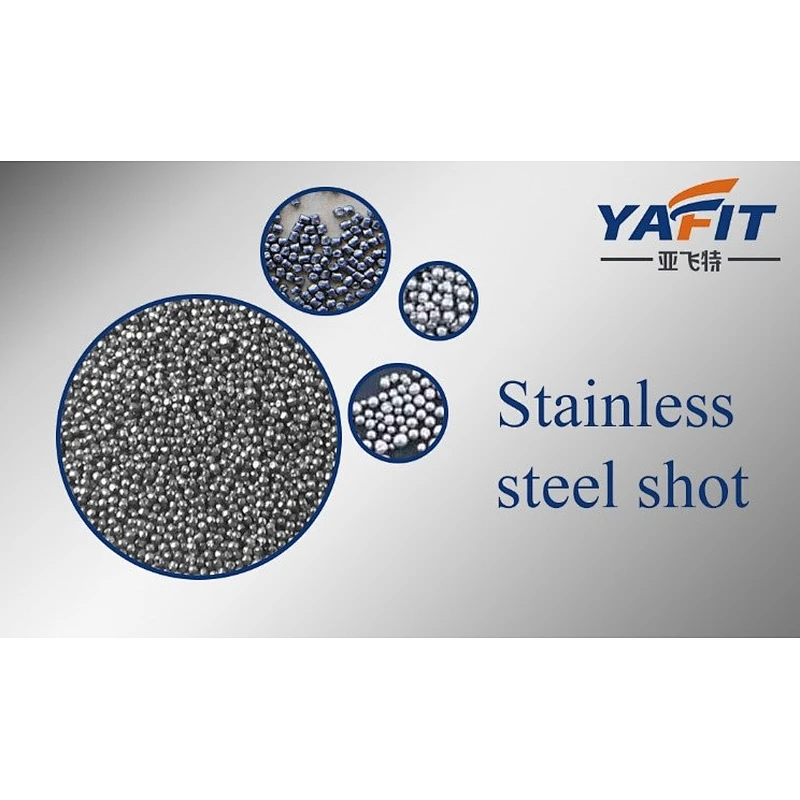

Stainless Steel Shot

Model NO.: Stainless Steel Shot

Quantity:

Product Description

Product specifications：0.2-1.5MM

Product Description：

304 Austenite Type C 0.25%,Cr=16-18%, Ni=610%, Si1%,Mn2%

430 Ferrite Type C 0.25%, Cr=16-18%, Si 1%, Mn 1%

410 Martensite Type C 0.25%, Cr=11-13%, Si 1%, Mn 1%

Products		Stainless Steel Shot
Chemical Composition	C	≤0.12%
	Mn	≤2.00%
	Si	≤1.00%
	Cr	17-19%
	Ni	7-10%
	S	≤0.03%
	P	≤0.035%
Microhardness		41-59HRC(388-509HV)
Hardness Deviation		Max Deviation ±1.0HRC or ±40HV
Density		7.8g/cm3

Distribution of Stainless Steel Shot

stainless steel shot removing rust:Shot blasting rust-removal, shot peening rust-removal casting parts rust-removal, forged parts and steel plate rust-removal, H-beam steel rust-removal, steel structure rust-removal.

stainless steel shot intensifying:Shot blasting intensifying of stainless steel parts and heat treatment parts.

stainless steel shot shot peening:Shot peening of Coloured aluminum, copper, magnesium die-casting and stainless steel.

mesh	Inch	MM	Model
			GF-10			GF-20			GF-30			GF-40			GF-50		GF-60
			GB-10			GB-20			GB-30			GB-40			GB-50		GB-60
			GS-10			GS-20			GS-30			GS-40			GS-50		GS-60
18	0.0394	1.000														5% max	5% max
20	0.0331	0.850												5% max	5% max
25	0.0278	0.710											5% max				95% min
30	0.0248	0.630									5% max	5% max				95% min
35	0.0197	0.500								5% max					95% min
40	0.0165	0.425							5% max			95% min		95% min
45	0.014	0.355						5% max			95% min		95% min
50	0.0117	0.300					5% max			95% min
60	0.0098	0.250				5% max			95% min
70	0.0083	0.212			5% max
100	0.0059	0.150		5% max
120	0.0049	0.125	5% max					95% min
140	0.0041	0.106				95% min
270	0.0019	0.050	95% min		95% min		95% min
				95% min
Model			S10			S20			S30			S40			S50		S60
