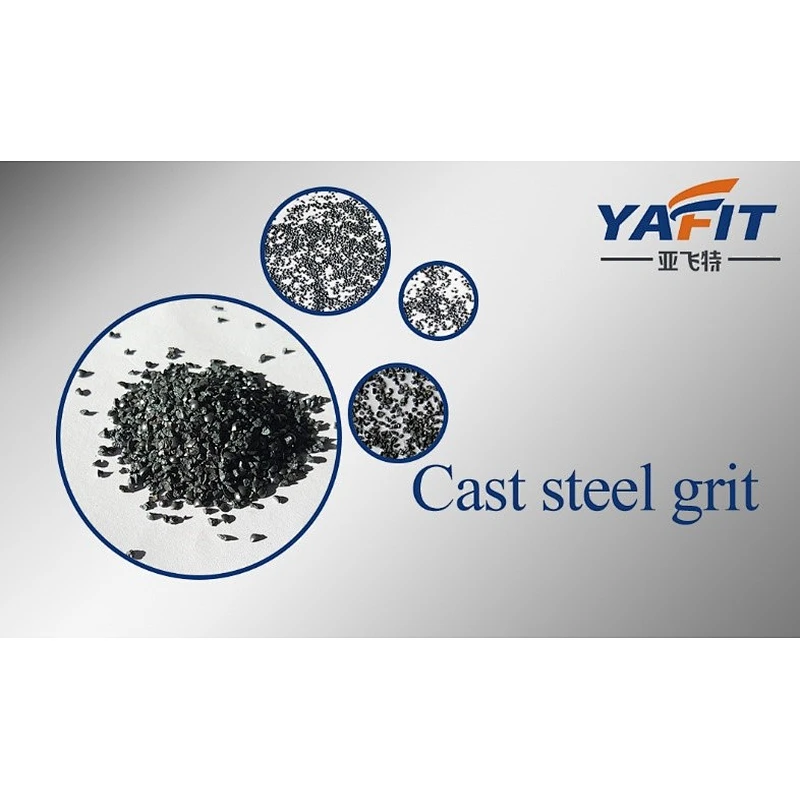

Steel Grit

Model NO.: Steel Grit

Quantity:

Product Description

Operative Standards:

In accordance with standards of GB/T18838.3－2008 Steel Shot and Steel Grit,SFSA20-66Cast Steel Abrasive, SAE J827 Cast Steel Shot, SAE J1993High Carbon Steel Grit, YB/T5149-1993 Cast Steel Shot, YB/T5150-1993Cast Steel Grit,ISO11124-3High Carbon Cast Steel Shot and Grit.

SAE	Application
G-12 G-14 G-16	Blasting/descaling medium-to-large cast steel, cast iron, forged pieces, steel plate and rubber adhered work pieces.
G-18 G-25 G-40	Cutting/grinding stone; Blasting rubber adhered work pieces;Descaling steel plate, container, ship hall before painting; Cleaning small-to-medium cast steel, cast iron, forged pieces, etc.
G-50 G-80 G-120	Blasting/descaling steel wire, spanner, steel pipe before painting process; Cleaning precision castings (eg. golf blocks).

Application:

Blast cleaning of cast steel grit:Used for blast cleaning of casting, die-casting,forging,sand removal of casting, steel plate, H type steel, steel structure.
Rust removal of cast steel grit:Rust removal of casting, forging, steel plate, H type steel, steel structure, descaling of forging.
Shot peening of cast steel grit:Shot peening of gear, heat treatment.
Shot blasting of cast steel grit:Shot blasting of profile steel,ship board,steel board,steel material.
Shot blasting of cast steel grit:Shot blasting of steel board, profile steel, steel structure.

Pre-treatment of cast steel grit:Pre-treatment of surface, steel board, profile steel, steel structure, before-painting.

Application Devices:

Steel grit mainly used for the following equipment including rotary barrel shot blasting machine, chain type shot blasting machine,pedrail type shot blasting machine,pass through shot blasting machine,table type shot blasting machine, Pendent-chain & Pile-type Shot Blasting Machine, trolley type shot blasting machine,abrator, abrator equipment,shot peening machine,shot peening equipment,sandblasting machine,sandblasting equipments,steel material pretreatment production line,steel plate pretreatment production line, steel structure pretreatment production line.

The Major Technological Index:

Products		Steel Grit
Chemical Composition	C	0.80～1.10%
	Mn	0.60～1.20%
	Si	0.50～1.20%
	S	≤0.03%
	P	≤0.03%
Microhardness		GP:42～50HRC (399～509HV) GL:56～60HRC (620～713HV) GH:63～66HRC (795～889HV)
Hardness Deviation		Max Deviation ±3.0HRC
Microstructure		Tempered Martensite or Sorbite
Density		7.5g/cm3

Distribution of Cast Steel Grit:

mesh	mm	规格
mesh	mm	QG,H, L,P -25	QG,H, L,P -20	QG,H, L,P -17	QG,H, L,P -14	QG,H, L,P -12	QG,H, L,P -10	QG,H, L,P -7	QG,H, L,P -4	QG,H, L,P -3	QG,H, L,P -2
7	2.80	all pass
8	2.36		all pass
10	2.00	80%min		all pass
12	1.70	90%min	80%min		all pass
14	1.40		90%min	80%min		all pass
16	1.18			90%min	75%min		all pass
18	1.00				85%min	75%min		all pass
20	0.850
25	0.710					85%min	70%min		all pass
30	0.600
35	0.500
40	0.425						80%min	70%min		all pass
45	0.355
50	0.300							80%min	65%min		allpass
80	0.180								75%min	65%min
120	0.125									75%min	60%min
200	0.075										70%min
325	0.045
SAE		G-10	G-12	G-14	G-16	G-18	G-25	G-40	G-50	G-80	G-120

Send Message

Phone

Message Content

Related Products

Garnet Sand

Model NO. 1

Stainless Steel Shot

Model NO. Stainless Steel Shot

Steel Cut Wire Shot

Model NO. Steel Cut Wire Shot

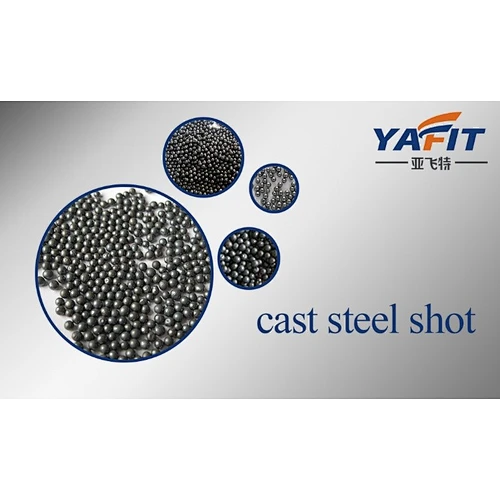

steel shot
